INTRODUCTION

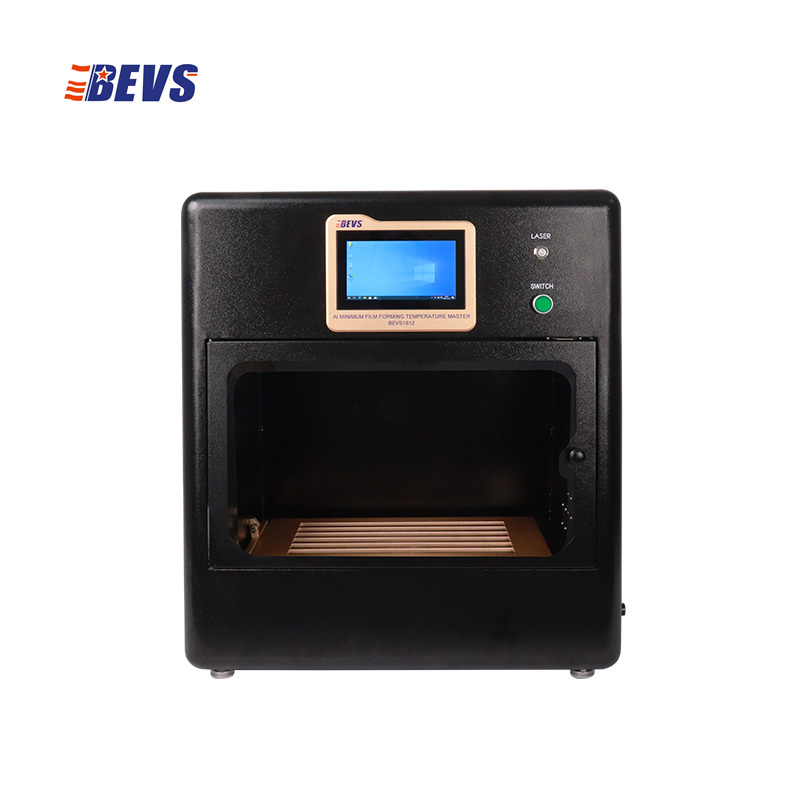

BEVS 1812 AI Minimum Film Formation Temperature (MFT) Master is equipped with an intelligent temperature control system that automatically detects the minimum temperature at which the coating on the substrate forms a uniform transparent film. It displays the film formation temperature in real time. The device is mainly used to evaluate the film-forming performance of polymer emulsions and is widely applied in industries such as coatings, adhesives, synthetic fabrics, leather, and paper.
FEATURES
1. 7-inch ultra-large touchscreen for simple and easy operation2. Equipped with an intelligent temperature regulation system for precise adjustment of the gradient plate temperature3. Built-in 16 high-precision temperature sensors to ensure accuracy in recorded data4. Capable of simultaneously testing 6 sets of samples, improving testing efficiency5. Integrated high-definition camera for precise film formation location identification6. Mobile infrared laser locator to assist in reading the temperature at the minimum film formation temperature location
STANDARDS
ASTM D 2354 Emulsion Vehicles
ISO 2115 Plastics
GB/T 9267 Emulsions for coatings and polymer dispersions for coatings and plastics
FUNCTIONS
1. Real-time display of gradient plate temperature
2. Rapid heating/cooling with stable temperature maintenance
3. Automatic detection of film formation location and measurement of minimum film
formation temperature
4. Automatic measurement of temperature at any location on the gradient plate
5. Automatic saving of test results, including photos and data
6. Provide test report output
TECHNICAL PARAMETERS
Temperature range: -10°C to 65°C, ±0.1°CSample quantity: 6 setsFilm width: 16mmLaser line movement range: 0~300mmPrecision: Reproducibility ±2°C, Repeatability ±4°CImaging system resolution: 5472×3768 pixels
ORDER INFO
BEVS 1812 AI Minimum Film Forming Temperature Master
BEVS 1805/1 25mm Cube Applicator Film Width 16mm Gaps：37/75um
BEVS 1805/3 25mm Cube Applicator Film Width 16mm Gaps：50/100um
