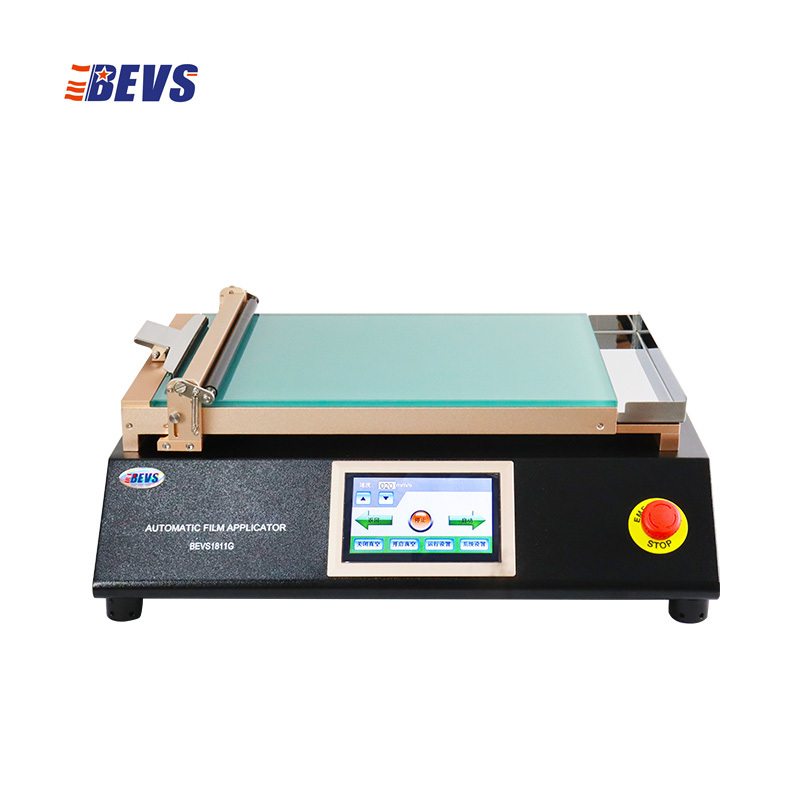

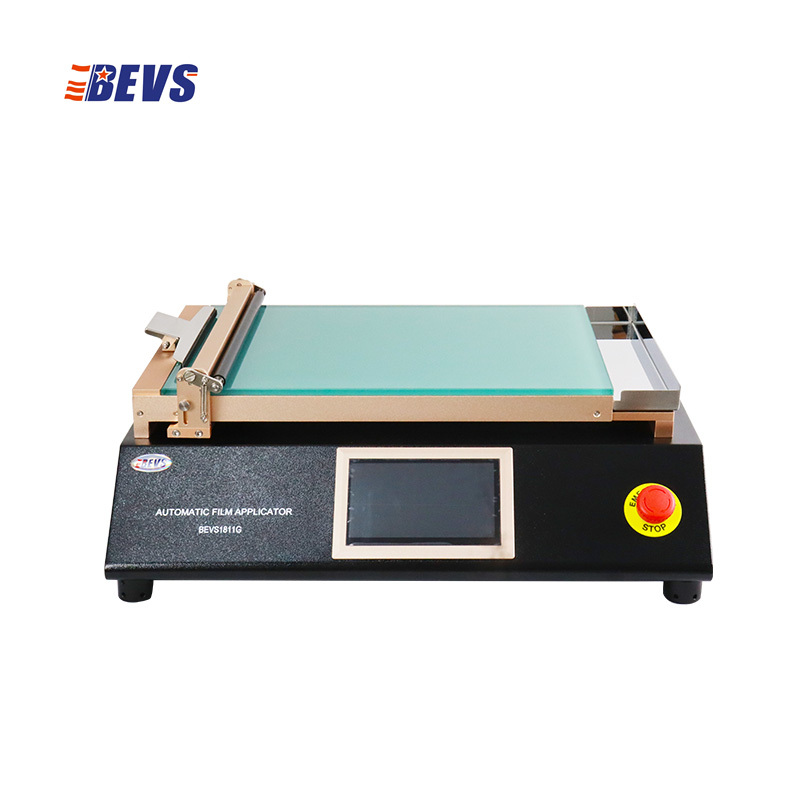

Auto Film Applicator

Name: Auto Film Applicator
Brand: BEVS instrumetns shop
SKU: BEVS 1811G
Price: 4389 USD
Availability: InStock

0.0 (0 Reviews)

1 Sold

$4,389.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

INTRODUCTION

BEVS 1811G is used to prepare uniform, traceable, stable and reliable coatings. It is fast and automatic, improving the reproducibility and efficiency, and obtains a uniform coating with the same physical properties, appearance, and chemical properties. It eliminates various instabilities caused by human factors such as speed, pressure and direction and provides high-precision sample for testing the rheological properties, wear resistance and hiding power of raw materials.

FEATURES

• 7" large touch screen
• Minimum coating speed 1mm/s
• Maximum coating speed 350mm/s
• Any position can be set on the screen as the starting point of the coating
• Maximum substrate thickness up to 30mm
• With a feeding tray
• USB data output

TECHNICAL PARAMETERS

• Voltage: 110V or 220V
• Power: 100W
• Maximum stroke of push rod: 455mm
• Coating distance: 30-420mm (Adjustable)
• Speed: 1-350mm/s
• Glass bed dimension: L500 x W330 x H12mm
• Machine dimension: L640 x W470 x H250mm

ORDERING INFO

BEVS 1811G Auto Film Applicator
