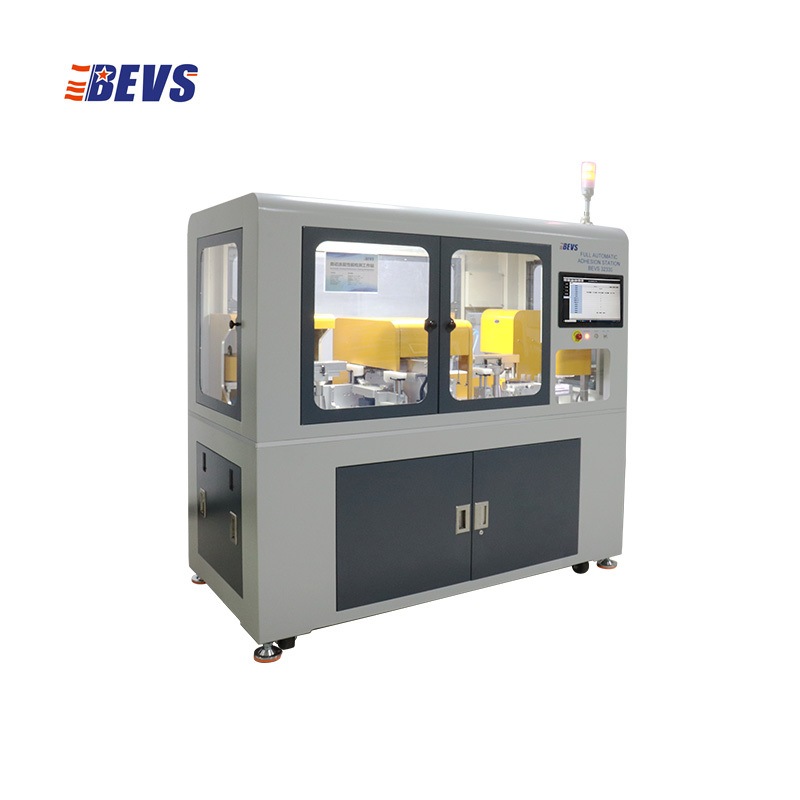

Automatic Coating Performance Testing Workstation

SKU:
0.0 (0 Reviews)
0 Sold
$0.00 $164,999.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
1/1
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Automatic Coating Performance Testing Workstation
  • Description
INTRODUCTION

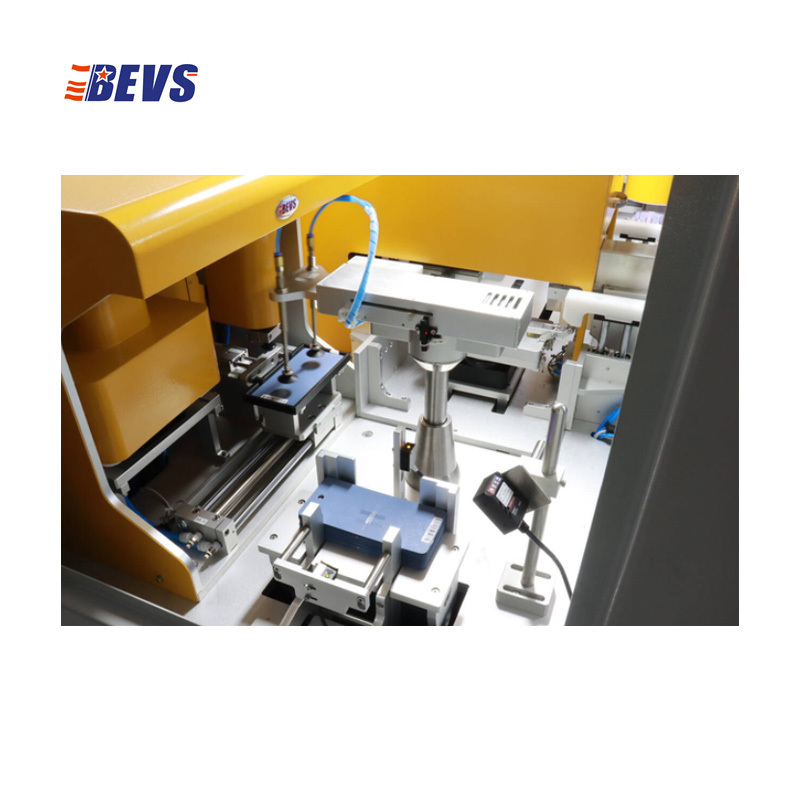

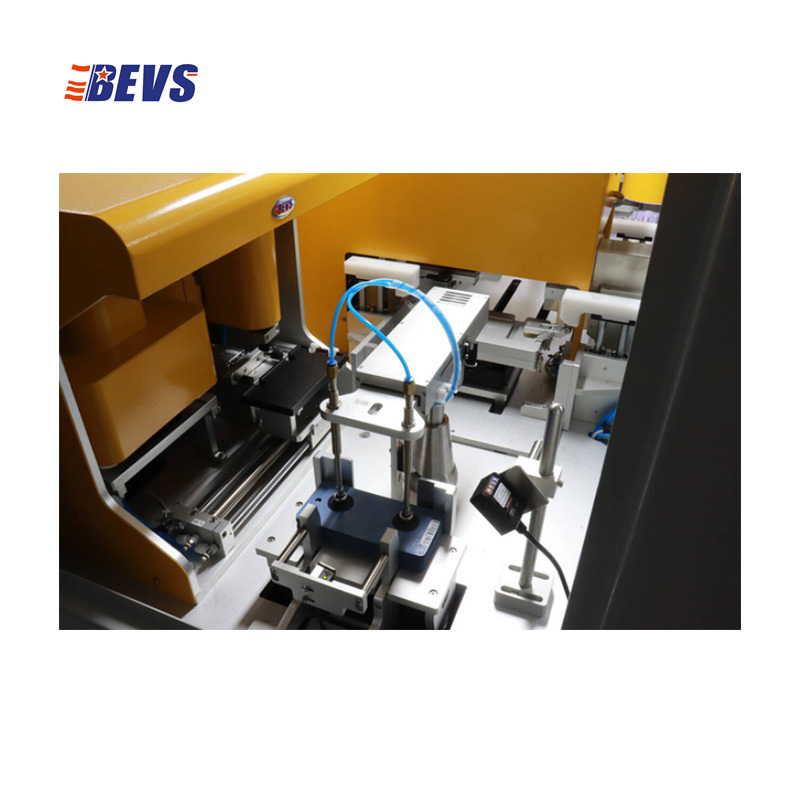

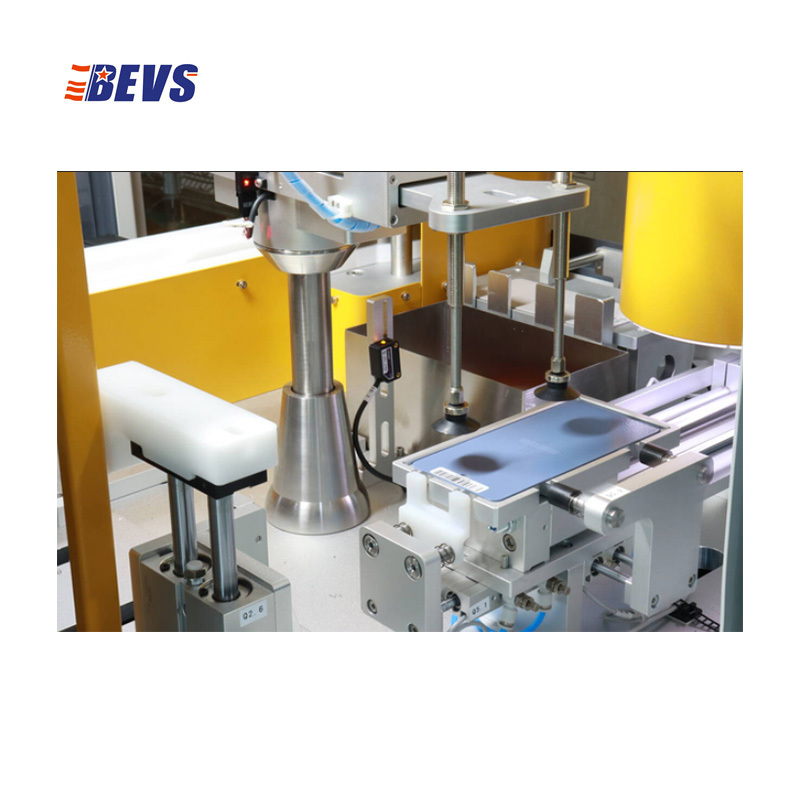

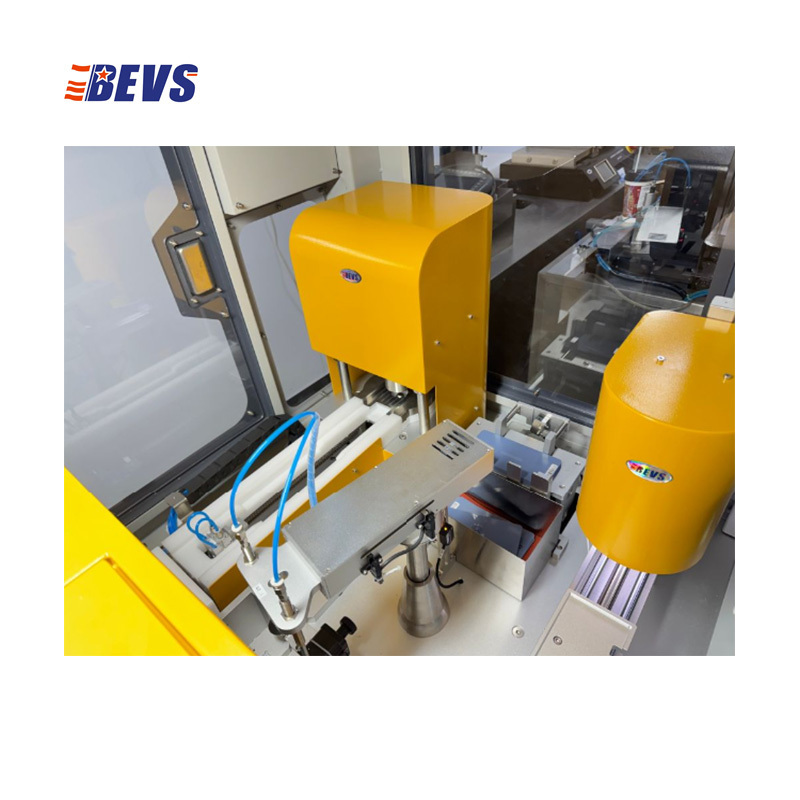

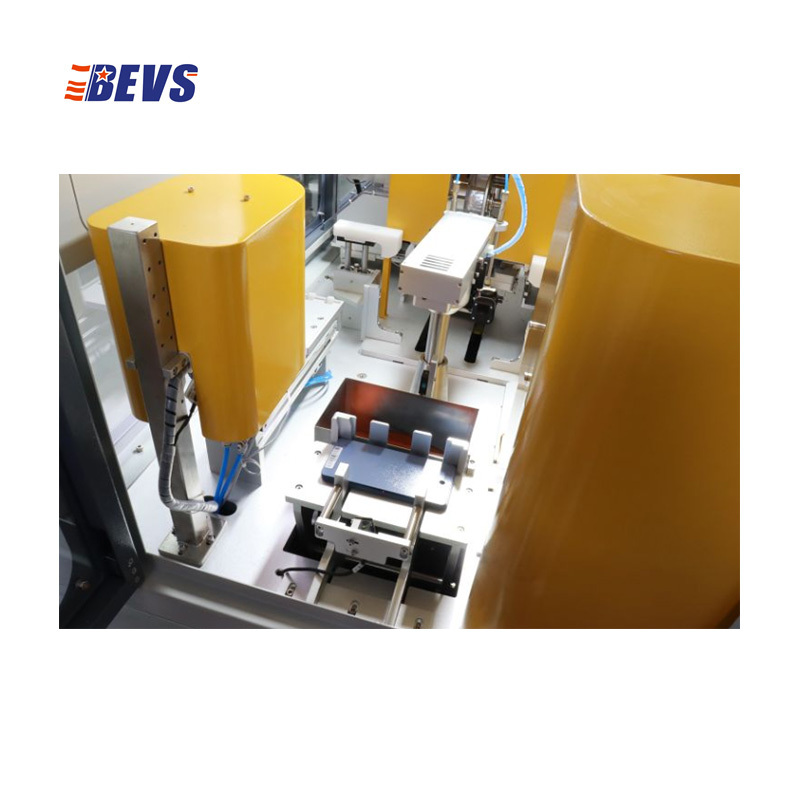

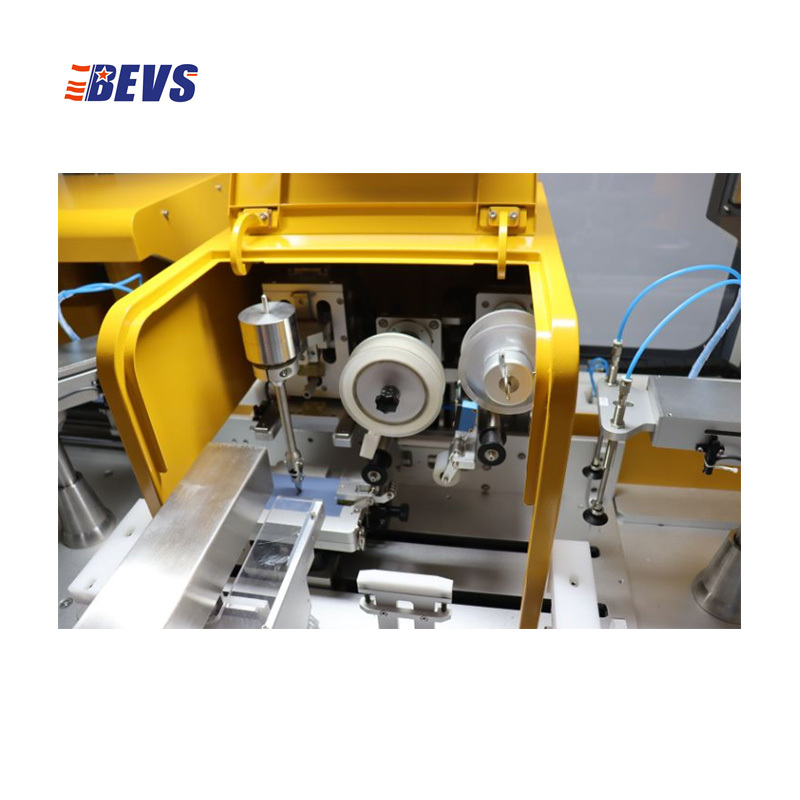

It is an intelligent workstation that integrates visual recognition system, automatic data storage system, mechanical action and automatic control system. It adopts the layout of production line detection process, automatically measures coating film thickness, gloss, adhesion, elasticity and other related properties. It can quickly detect and analyze coating performance, greatly improving the accuracy and repeatability of test results.


FEATURES

• Industry first multi-coating performance testing workstation
• Adopting test panel QR code management system
• Automatic loading and unloading, automatic code scanning
• Automatic measurement of film thickness, gloss
• Automatically complete cross cut test and cupping test
• Automatic recognition and judgment of test results
• Compatible with a wide range of test panels
TECHNICAL PARAMETERS

• Image system resolution: 5472x3768 pixels
• Maximum test panel size: 150x100×7mm, LxWxH
• Thickness measurement range: 1~1000m, ‡1%
• Gloss measurement angle: 20°, 60°, 85°
• Cross-cut spacing: 1, 15, 2, 3mm
• Cupping speed: 0.02~0.4mm/s, ‡0.5%
• Test panel storage capacity: 50~300 PCS
ORDER INFO

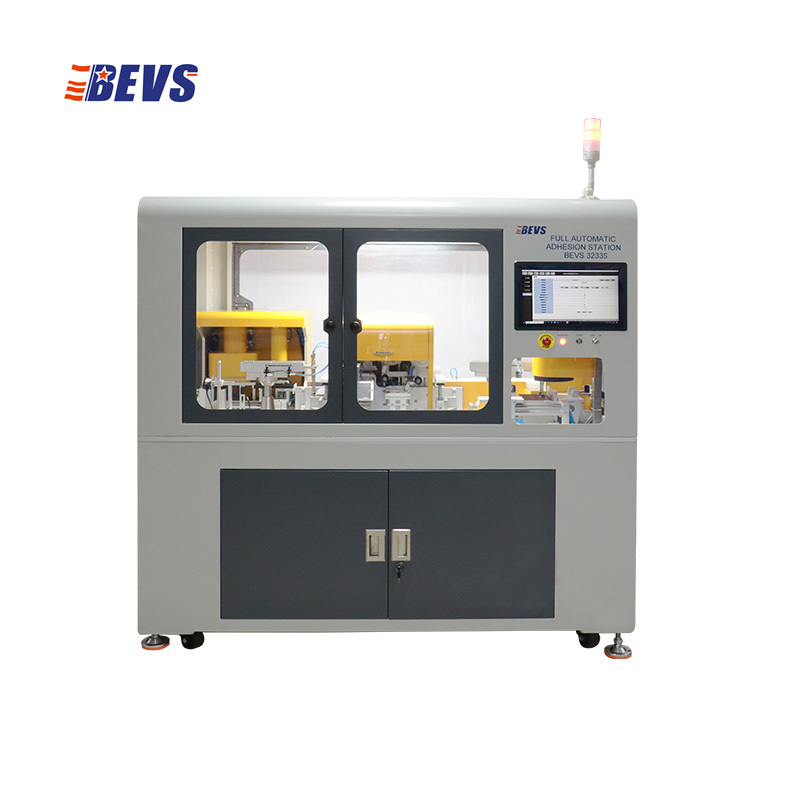

BEVS 3233S Automatic Coating Performance Testing Workstation
