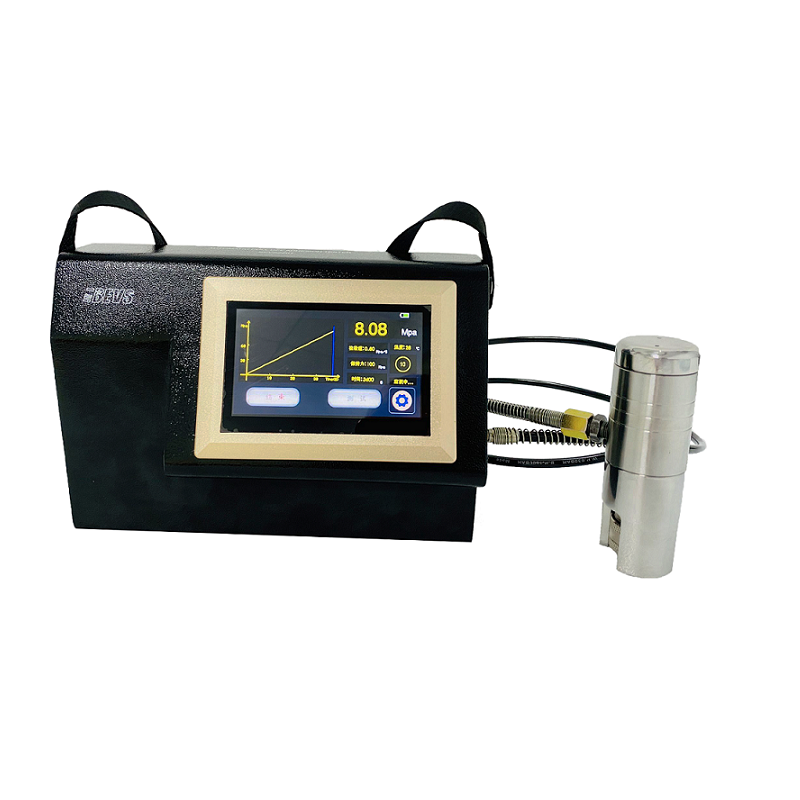

Automatic Pull Off Adhesion Tester

Name: Automatic Pull Off Adhesion Tester
Brand: BEVS instrumetns shop
SKU: 69
Price: 2811 USD
Availability: InStock

0.0 (0 Reviews)

$2,811.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

INTRODUCTION

At present, cross cut method is used for qualitative evaluation of coating adhesion, but not quantitative testing. With quality control to improve and the development of new material, more and more users want to have the quantification on the adhesion and cohesion between coating and substrate, meanwhile, also need to monitor the influence change of adhesion of anti-corrosion coating on some outdoor concrete based coating, marine coating and bridge coating by the environmental temperature and humidity.
BEVS 2201 Automatic Pull Off Adhesion Tester adopts the full touch screen technology, It enables to test the adhesion of metal and other substrate and temperature and humility on the surface to further evaluate the coating quality and lifetime.

Features

Application

Coating adhesion measurement on metal, wood, concrete and other substrates.

Technical info

♦Pull rate accuracy: 2.5%+0.3 seconds
♦Pressure accuracy: 1% full scale
♦Pressure resolution: 0.01mpa
♦Unit: MPa, psi
♦Display: Capacitive display touch screen
