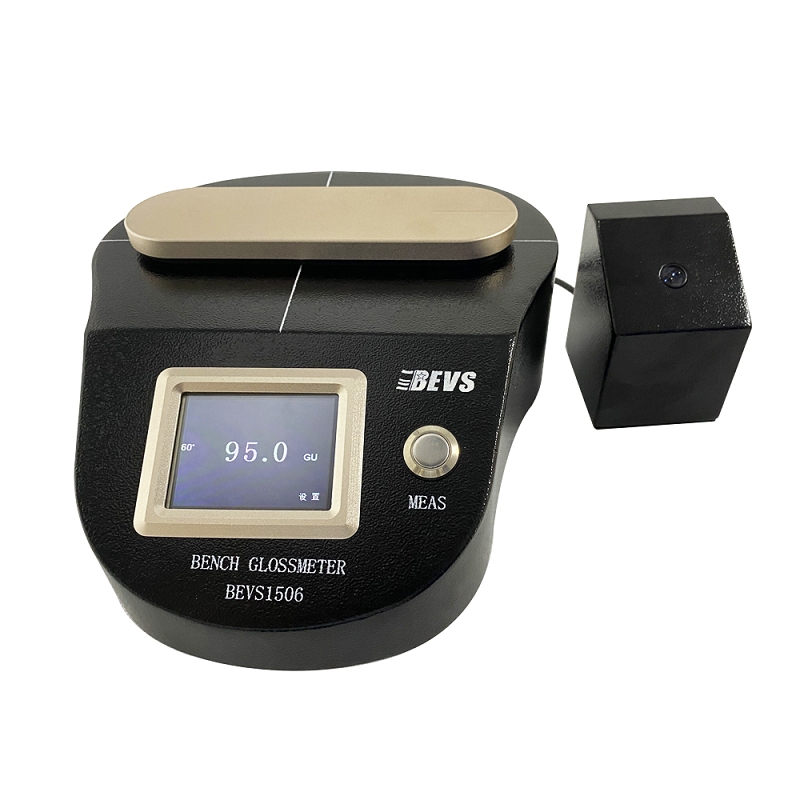

INTRODUCTION
This small, portable instrument is made for measuring the gloss of curved surface, small pieces, specially shaped surface of small products, application in the area of coatings, automobiles, toys, furniture, plastics, banknotes, teeth, ceramics etc.
Features
♦Automatic calibration
♦One button operation

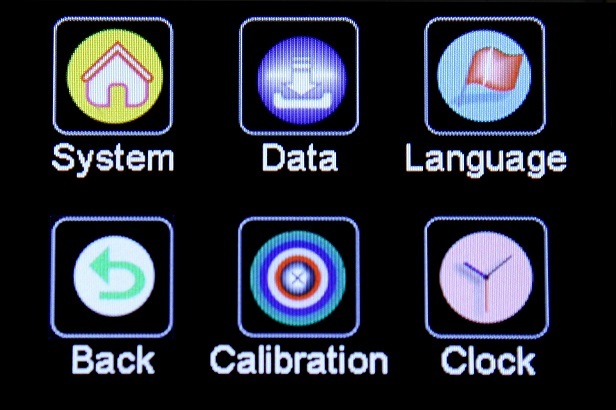

♦Colorful touch screen displaying readings, statistics and calibration procedure status.
♦Calibration can be done automatically within one second
♦Up to 3000 readings stored.
♦Convenient measurement with infrared sensor switch
♦Foot switch available for simple measurement
Technical info
♦Angle:60°
♦Range:0-2000GU
♦Repeatability: ±0.5GU(0-199.9GU)
♦Precision: 1GU
♦Measurement area: 2x2mm
♦Display resolution: 320×240
♦Control: Touch screen with one button measurement
♦Memory: 3000 readings
♦Operation temperature: -10 - 40℃
♦Port: USB
♦Dimension: 220×190×85mm (L×W×H)
♦Weight: 3kg
Standard
ASTM D523, DIN 67530
Accessory info
BEVS1506/P/001 Standard Calibration
BEVS1506/P/002 USB Data Cable
BEVS1506/P/003 Foot switch
BEVS1506/P/004 Optical Sensor Switch
ORDER INFORMATION
BEVS 1506 Bench Glossmeter
Delivery with 1 x calibration tile, 1 x USB cable, 1 x foot swtich and 1 x sensor switch
