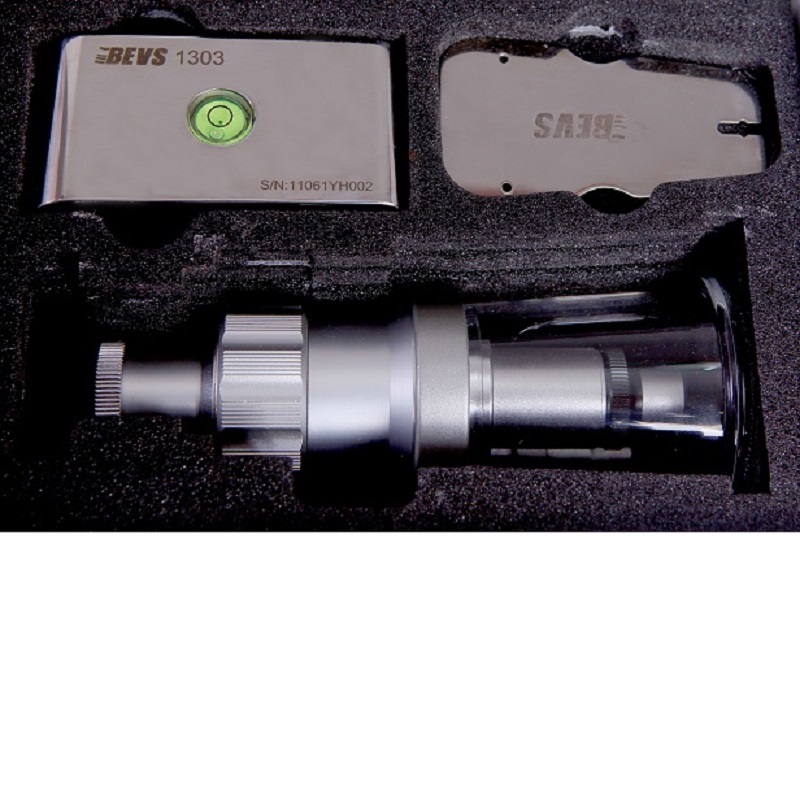

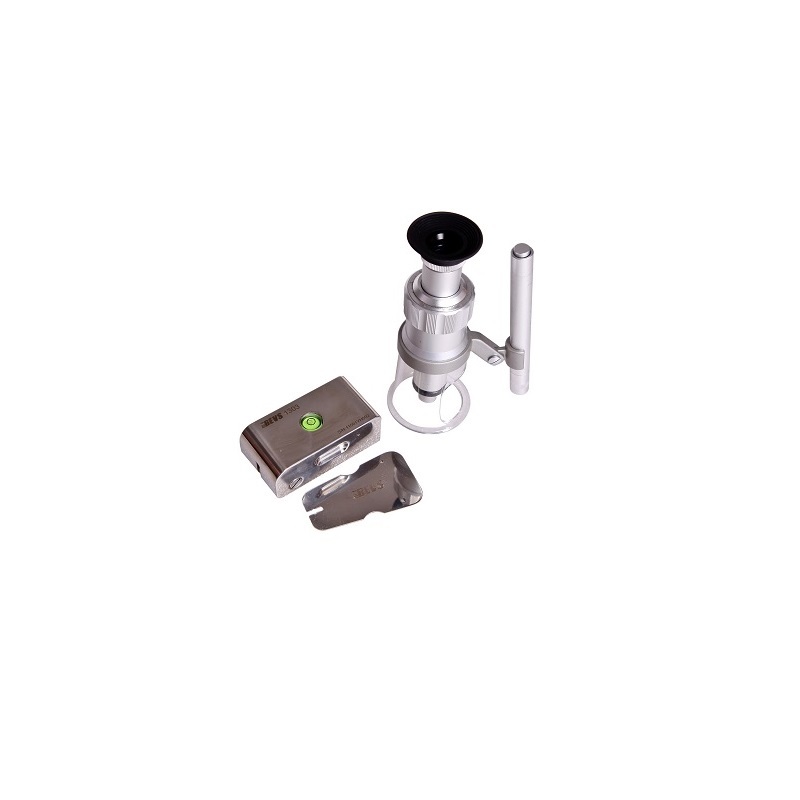

Buchholz Indentation Tester

Name: Buchholz Indentation Tester
Brand: BEVS instrumetns shop
Price: 686 USD
Availability: InStock

0.0 (0 Reviews)

0 Sold

$686.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

INTRODUCTION

BEVS Buchholz Indentation Tester can be used to evaluate of indentation resistance of plastic deformable coatings. It is placed onto the specimen surface under a constant test load (500g) provided by a block tester, move the tester after 30 seconds, there is a trace left and then measure via a 20 x magnification illuminated microscope. The coating hardness is indicated by the length of the indentation mark.

Standard

ISO 2815, BS 39100 E9, DIN 53153, ECCA-T12

SPECIFICATION

Two support pins made of hardened stainless steel
Built-in bubble level to keep accuracy
Circular tool made of hard metal
High precision microscope to obtain correct result

ORDER INFORMATION

BEVS 1303 Buchholz Indentation Tester
