Cylindrical Mandrel Bend Tester

Name: Cylindrical Mandrel Bend Tester
Brand: BEVS instrumetns shop
Price: 1931 USD
Availability: InStock

0.0 (0 Reviews)

0 Sold

$1,931.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

INTRODUCTION

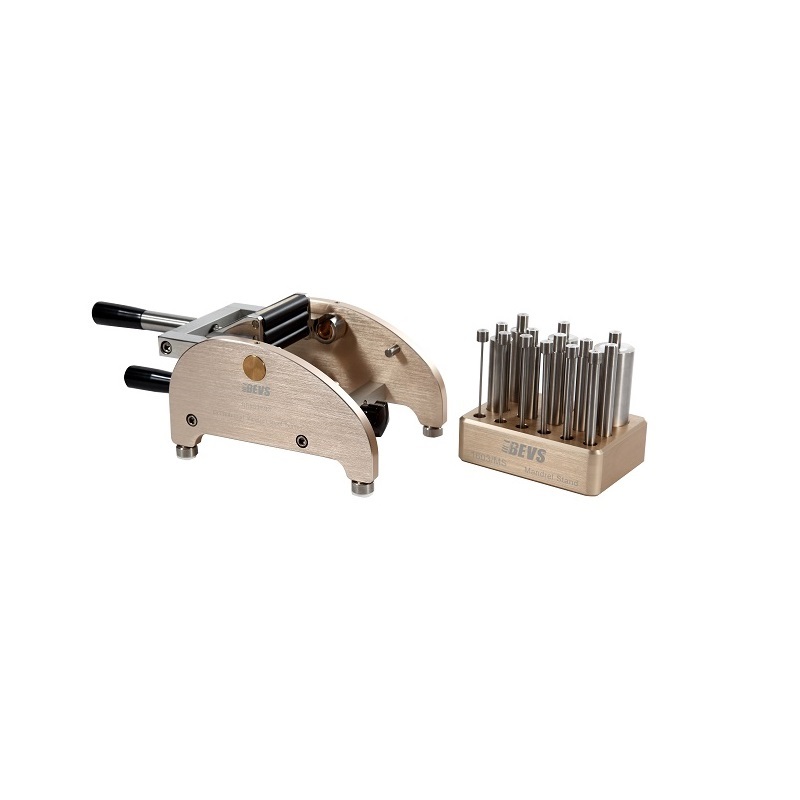

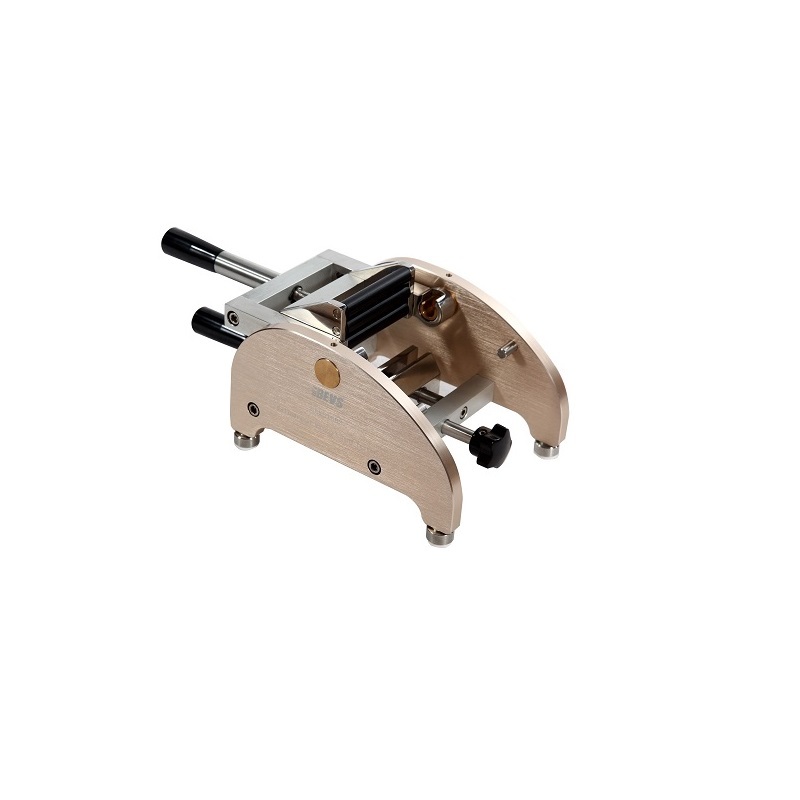

The item is a very robust mechanical unit for determining the elasticity, adhesion and elongation of dry paint on metal sheet. The coated specimens up to 70/100mm width, which are bent perfectly and regularly on decreasing mandrels until cracks can be observed. It comes with a kit of 14 stainless steel mandrels with diameters of: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 19, 20, 25 and 32 mm.

FEATURES

Made of stainless steel and high-quality alloy aluminum
Compact and sturdy structure, suitable for desktop use, simple and quick operation
The pressure roller shaft is made of rigid PVC, and the 3 pressure roller shafts are parallel to the axis of the test cylinder

SPECIFICATION

Maximum sample width: 70mm or 100mm
Sample thickness: 0.3 - 1 mm

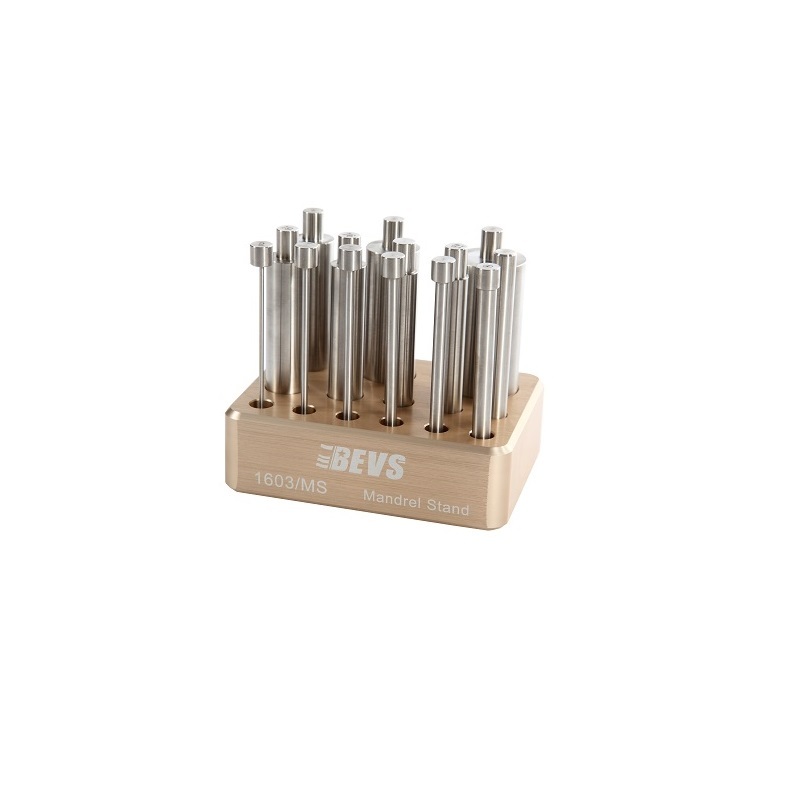

Mandrels with diameters: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 19, 20, 25 and 32mm

ORDER INFORMATION

BEVS1603 Cylindrical Mandrel Bend Tester, width 70mm
BEVS1603A Cylindrical Mandrel Bend Tester, width 100mm
