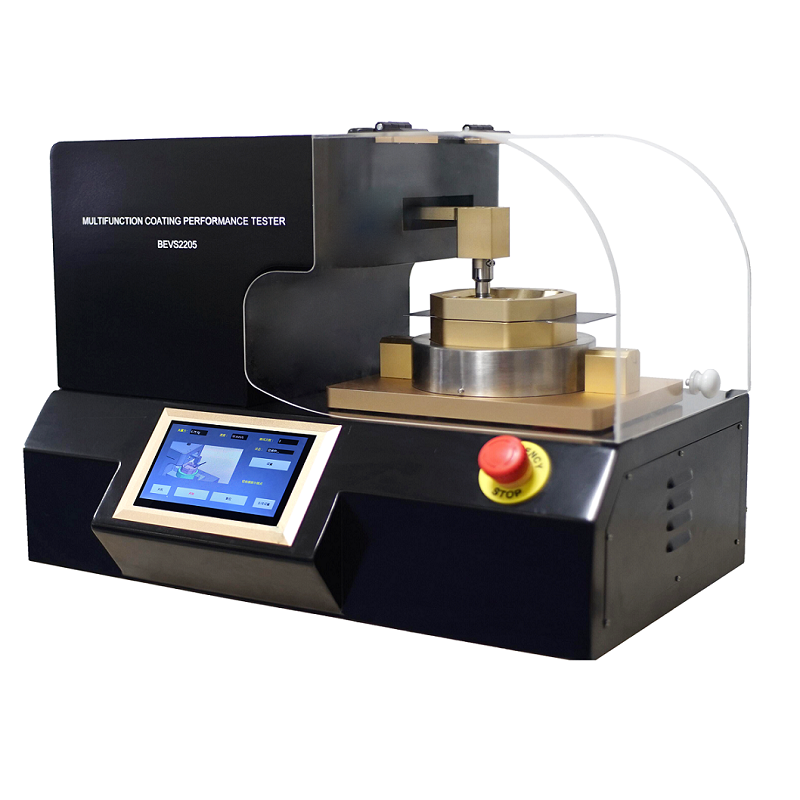

Multifunction Coating Performance Tester

0.0 (0 Reviews)
$0.00 $28,119.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Description
INTRODUCTION

This instrument enables to test the scratch resistance performance, adhesion performance, hardness and linear abrasion on the coating. It has an automatic sample locking test platform, rotation and movement, test pressure adjustment and speed adjustment can be achieved. With the improvement of product quality and QC frequency increasing, the traditional manual test method will be replaced by intelligent, automated method, to avoid human error caused by the operator. BEVS 2205 provides fast and accurate test results for companies which have batch testing requirement, R&D department and testing organizations.



Technical info



Panel Size: Max. Width 75mm Cutting Space: 1 - 5mm
Sample Thickness: 0.5 - 20mm Scratch Stylus: Ø 0.5/1.0/ 2.0mm
Standard Load Range: 5 - 50N Pencil: 6B - 6H
Special Load Range: 1 - 10N (Optional) Dimension: 550L x 410W x 520H mm
Cutting Stroke Length: Max. 45mm Power Supply: 110/230V AC, 50/60Hz (Optional)
Cutting Speed: 2 - 20mm/s Max Power: 500W



Standard

ISO 2409-2013, S0 15184, ASTM D3359, D3363, BS 3900 E6, GB/T9286-98


Features




Order info

BEVS 2205 Multifunction Coating Performance Tester
