INTRODUCTION

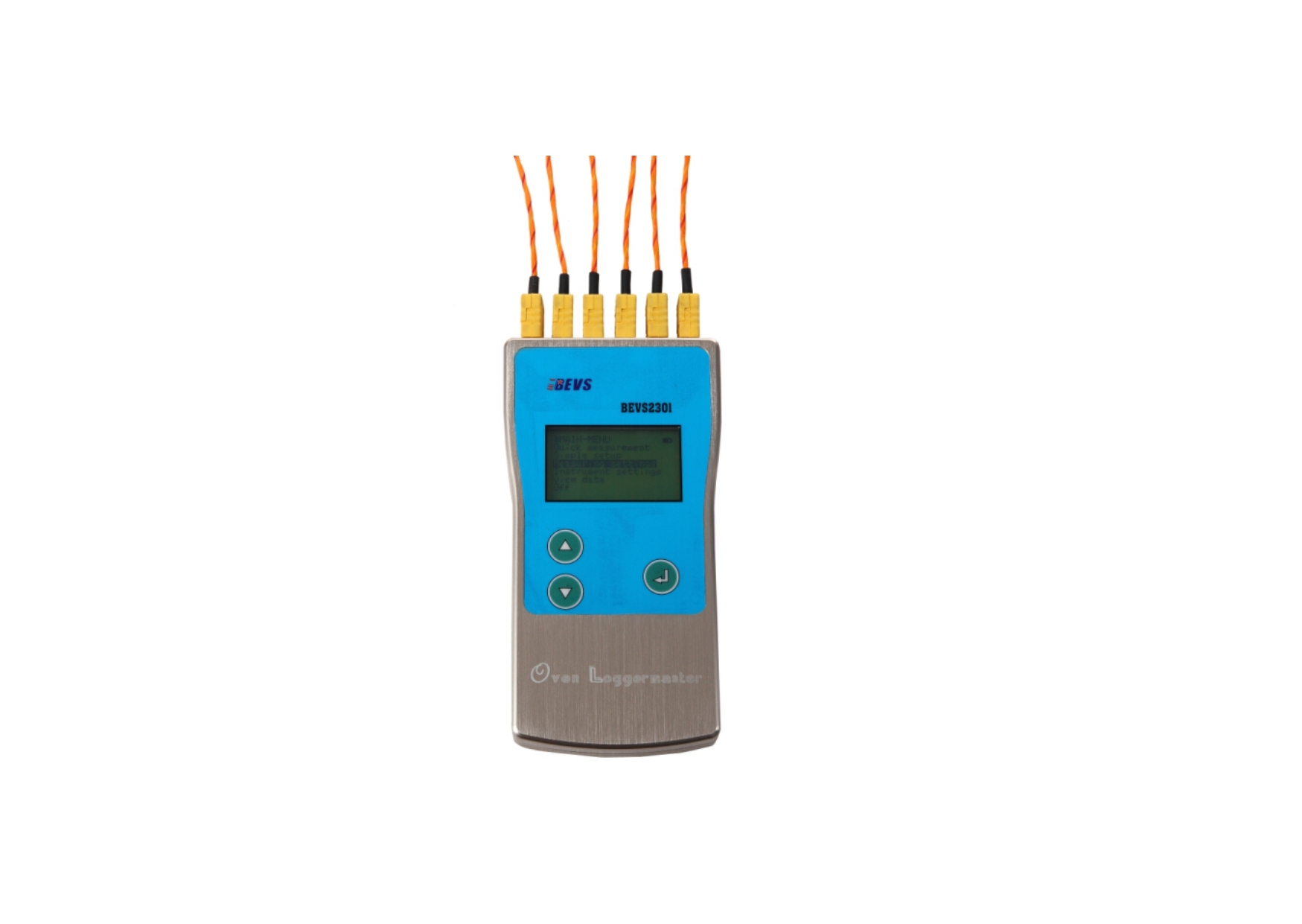

BEVS Oven Loggermaster is robustly comprehensive, intelligent and easy-to-use, which used to measure and store the temperature profiles of both the sample and the oven during the cure process. The record data can be downloaded to PC for a comprehensive evaluation of the conditions in oven.

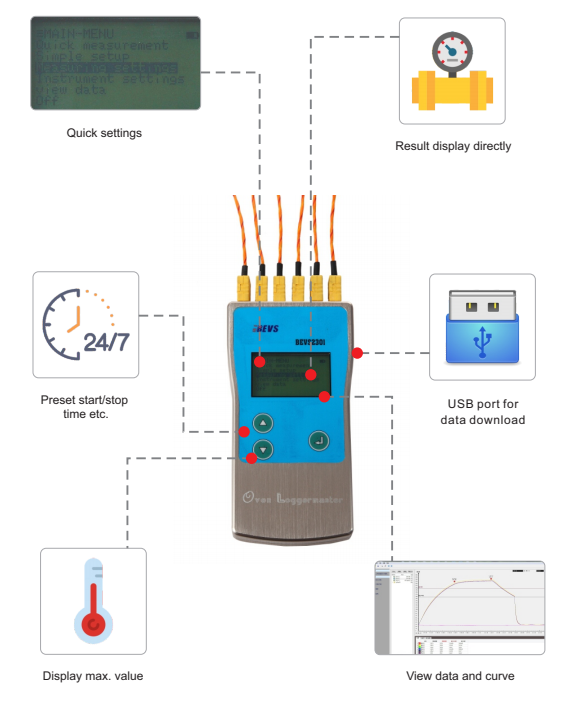

FEATURES
Advanced and high-precision
An intelligent datalogger specially designed for the coating industry, with an accuracy of ±0.3°C, the recording interval can be set arbitrarily from 1 second to 1 hour, and the recording temperature range is from 0°C to 1300°C.
All parameters can be set directly without connecting to a computer.
Directly browse information such as recorded data and temperature curve.
Start and stop recording time and date can be preset
Optional recording interval
The highest measurement temperature range required can be selected to ensure high accuracy result
Intuitive analysis of measurement result
Obtain results directly
With a USB interface for date downloaded to the PC for a comprehensive analysis and evaluation
Flexible and easy-to-operate analysis software
Multifunctional analysis such as measurement data and 2D curve graphics can be performed to judge the quality of the whole oven to optimize the baking cost and improve the product quality
Important information such as temperature distribution and user data are gathered in a complete report

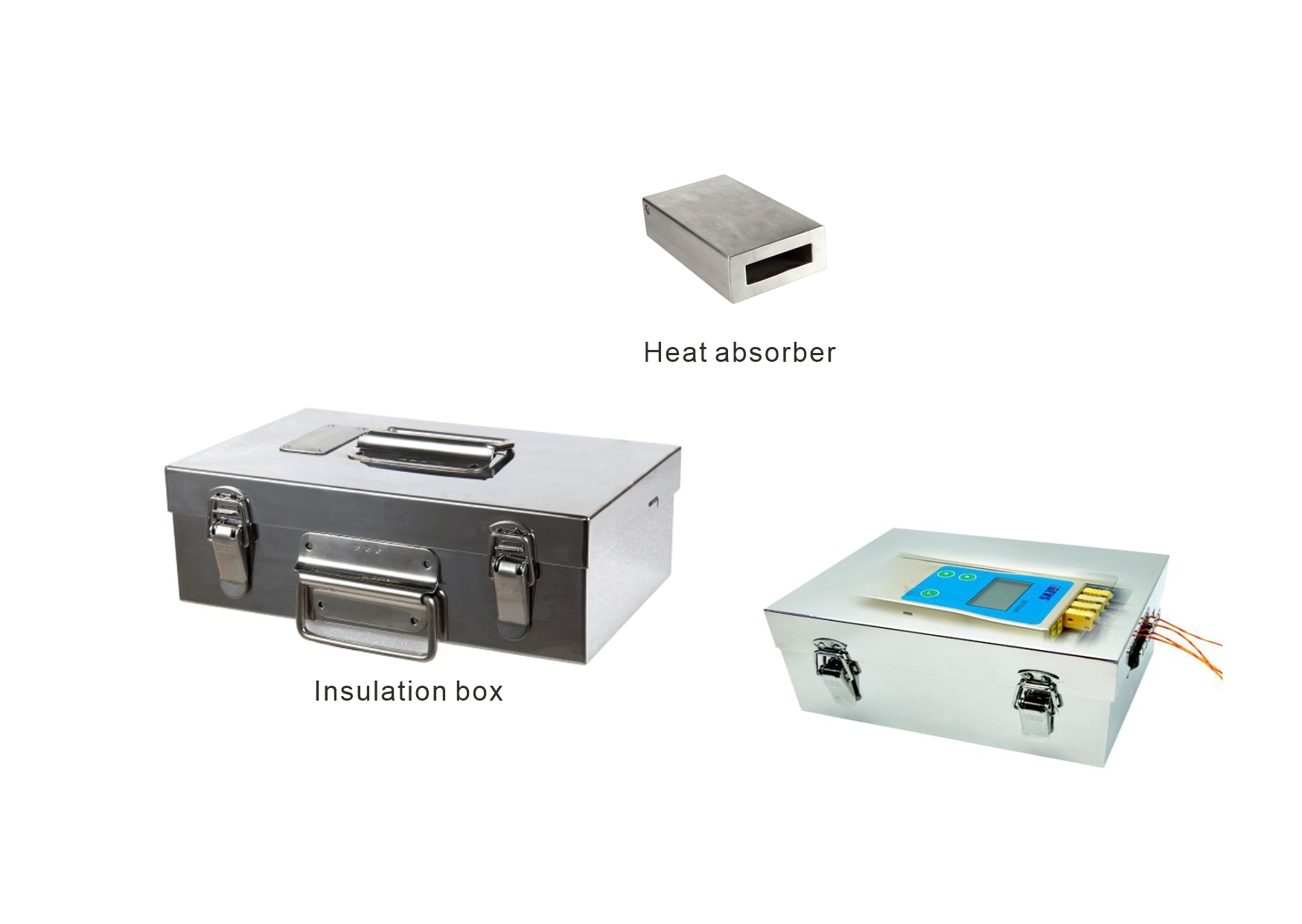

Outstanding thermal insulation System
Each logger is equipped with a high quality thermal insulation system
The insulation box is equipped with advanced stainless steel shell,which can be customized
Advanced heat absorber
SPECIFICATION
Range: 0-1300℃
Accuracy:±0.3℃
Resolution: 0.1℃
Probe type: K
Channel quantity: 6
Operation temperature：0-60℃
Interval: from 1 second to 1 hour
Connect port: USB
Batteries: 3×3.7V(16340) rechargeable battery
Battery life: 120 hours continuous use
Size :87×165×23 mm
ORDER INFORMATION
Please select the proble needed while ordering.
