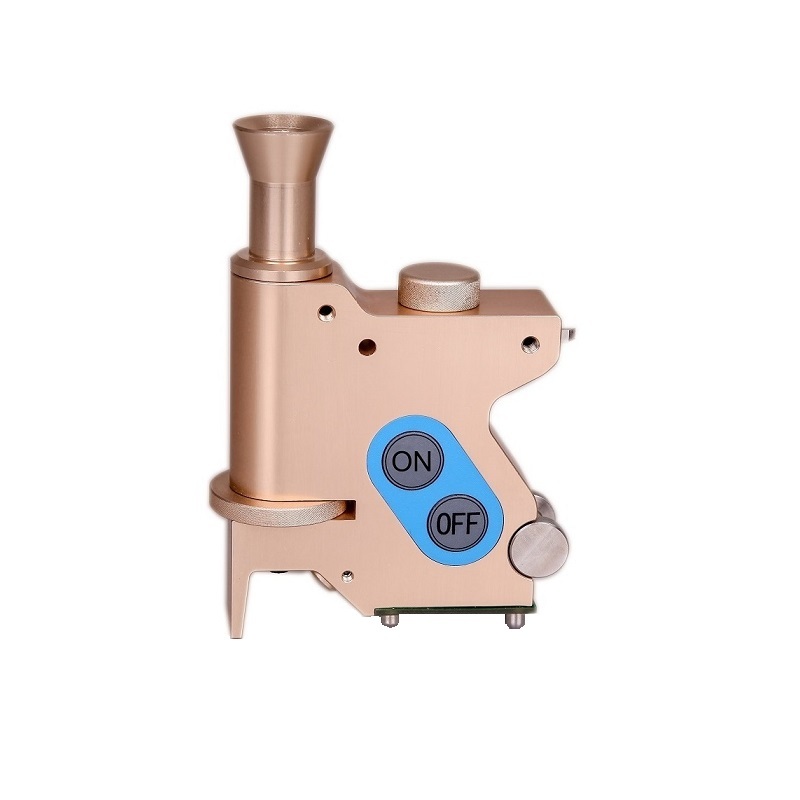

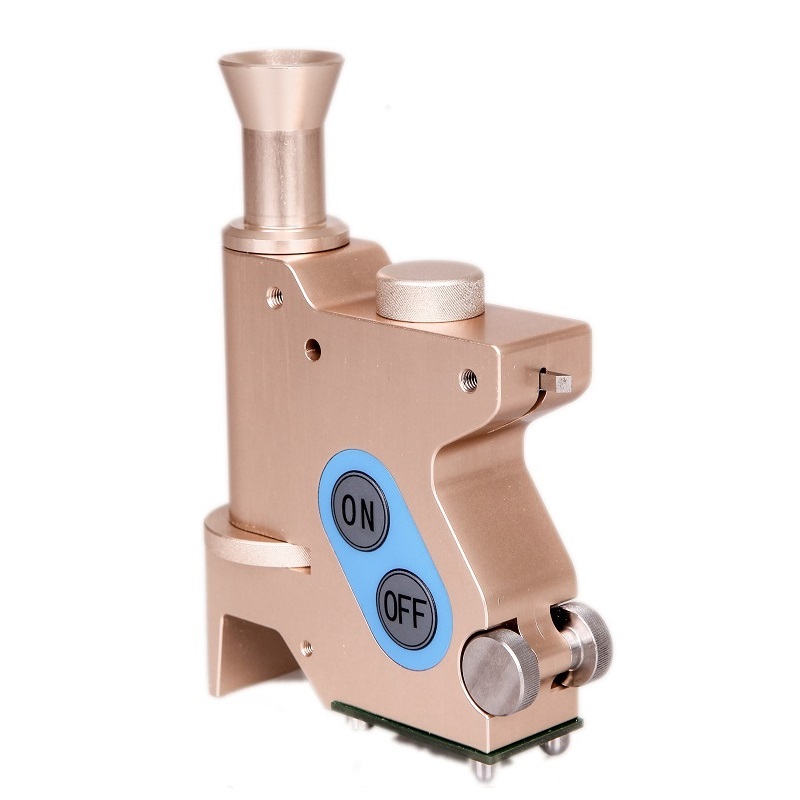

Paint Inspection Gauge

SKU:

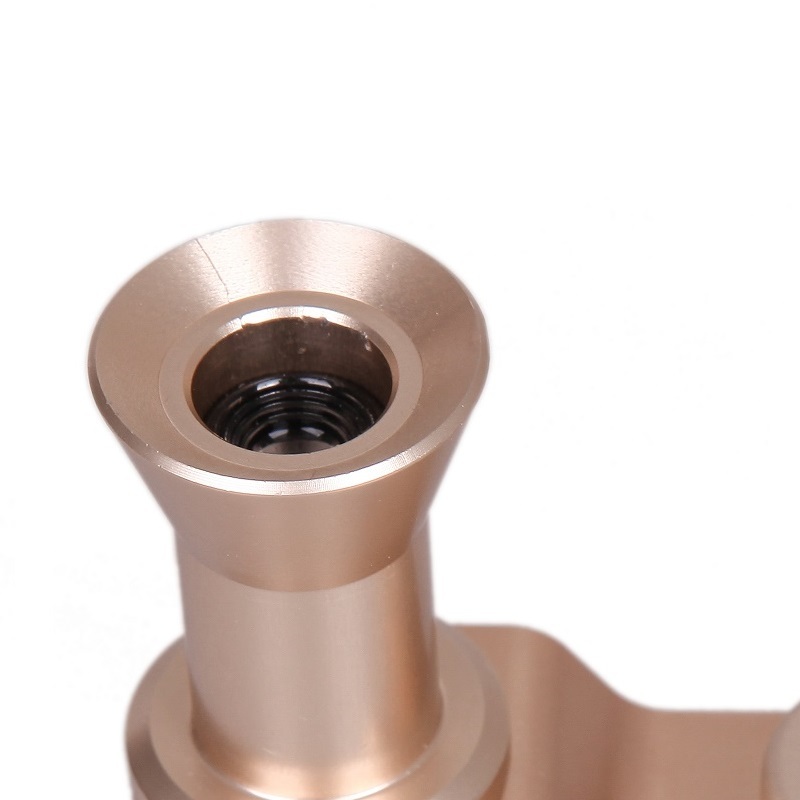

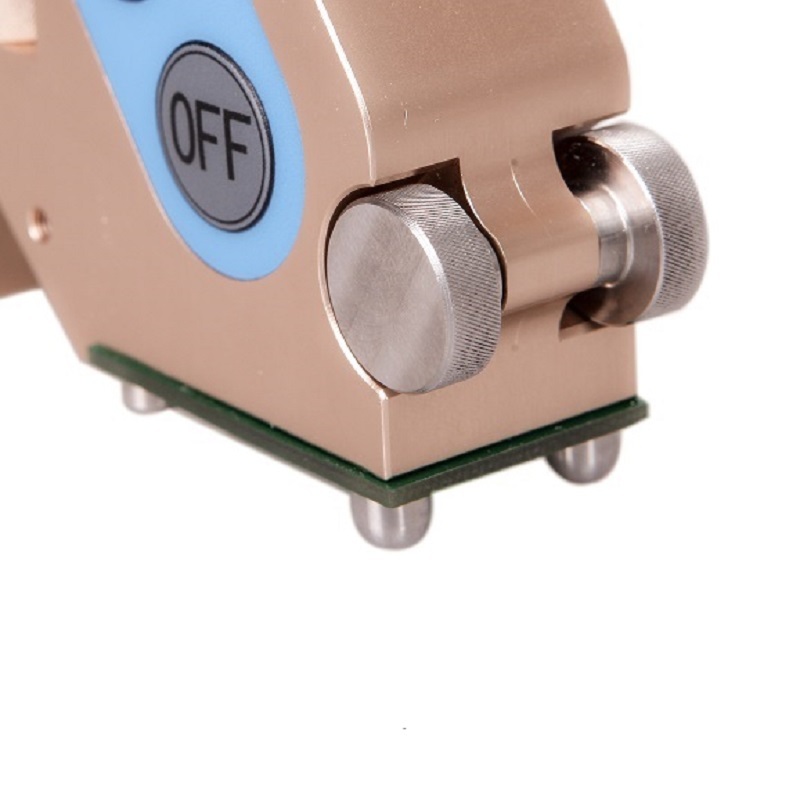

A cut is made on the test surface with a V-shaped tool.The coating thickness can be measured with the built-in microscope under the LED light.
0.0 (0 Reviews)
0 Sold
$0.00 $1,015.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Paint Inspection Gauge
1/1
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Paint Inspection Gauge
  • Description
INTRODUCTION

BEVS1707 PIG is using destructive method to measure coating thickness, containing single and multiple coats, applied on all of substrates, e.g.:aluminum, iron, plastic, wood, concrete, glass etc.


Operating Steps



Standard

ASTM D4138, DIN 50986, ISO 2808




SPECIFICATION
Cutter Cut Angle(°) Range(μm) D Factor(μm)
No.1 45 20 -1800 20
No.2 63.4 10-900 10
No.3 84.3 2-180 2


ORDER INFORMATION
BEVS 1707 Paint Inspection Gauge, including 3 x cutters (No. 1, 2 and 3 each), 1 x battery, 1 x marker pen and 1 x carrying case
Accessory info Range(µm)
BEVS 1707 PIG/1 Cutter No.1
BEVS 1707 PIG/2 Cutter No.2
BEVS 1707 PIG/3 Cutter No.3
